DEM-QX01Q-SR4

40GBase-SR4 Multi-mode OM3 (100 m) / OM4 (150 m) QSFP+ Transceiver

Description

D-Link's 40G QSFP+ Module series are hot-swappable QSFP+ transceivers that plug into QSFP+ slots on switches and support 40G Ethernet. The D-Link 40GBase QSFP+ Module Series transceivers offer customers a wide variety of 40G Ethernet connectivity options for data centers, enterprise wiring closets, and service provider transport applications.

Quad Small Form-factor Pluggable Plus Format
The transceivers use the Quad Small Form-factor Pluggable Plus format (QSFP+) connectors,which integrate four transmitting and four receiving channels. QSFP+ supports up to 10.5 Gb/s per channel for applications such as 40G Ethernet.

Hot Pluggable
All D-Link transceivers are hot pluggable. You can connect atransceiver while the system is powered on without causing any issues, and easily swap one for another without having to reboot the switch each time. This permits modules to be added or removed without interrupting the network, facilitating maintenance and greatly reducing downtime.

40G Ethernet speeds
The transceivers all support 40G Ethernet, which results in very fast data transmissions of up to 40 Gbit/s. This is 40 times faster than Gigabit Ethernet and enables the switch to handle faster and higher data transmissions, making it very suitable for business needs.

General features

Transceiver Type
• QSFP+

Fiber Media support
• Multi-mode

Distance Capacity
• OM3 MMF: 100 m
• OM4 MMF: 150 m

Compliant Standard
• IEEE 802.3ba, 40GBase-SR4

Connector
• MPO (male)

Single/Bi Direction
• Single direction

Wavelength
• 850 nm

Output Optical Power (TX)
• Max.: 6.53 dBm
• Min.: -5 dBm

Input Optical Power (RX)
• Max.: 2.4 dBm
• Min.: -9.5 dBm

Sensitivity
• -9.5 dBm

Cable Type
• Single 1x12 MPO receptacle (female) with OM3 or OM4 MMF

Supported Features
• Hot Pluggable
• MSA Compliant

Physical Parameters
Power
• 3.3 V

Max. Input Current
• 600 mA

Min. Power Budget
• 4.5 dB

Max. Power Budget
• 9 dB

Dimensions
• 125 mm x 18.35 mm x 8.5 mm

Operating Temperature
• 0 to 85 °C

Storage Temperature
• -40 to 100 °C

Operating Humidity
• 30% ~ 70%

Storage Humidity
• 30% ~ 70%

Certificates
• CE
• RoHS

Certificates

Order info

DEM-QX01Q-SR4/B1
40GBase-SR4 Multi-mode OM3 (100 m) / OM4 (150 m) QSFP+ Transceiver

Pictures

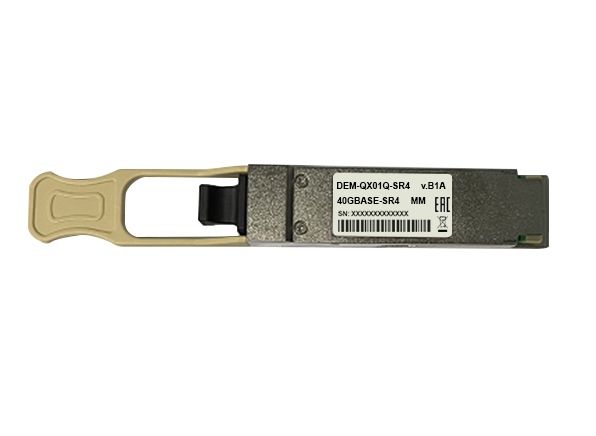

DEM-QX01Q-SR4/B1
Front view
View from the right
Bottom view
